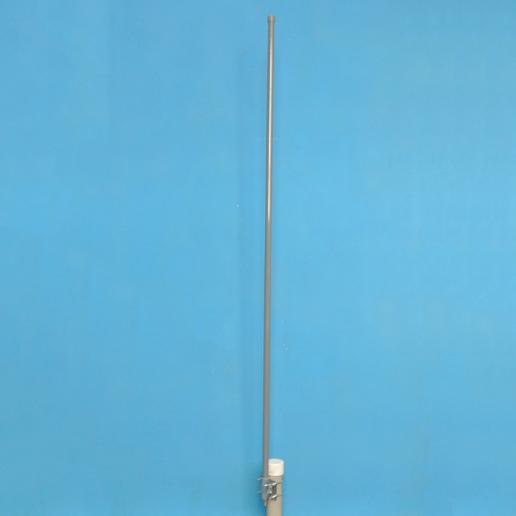

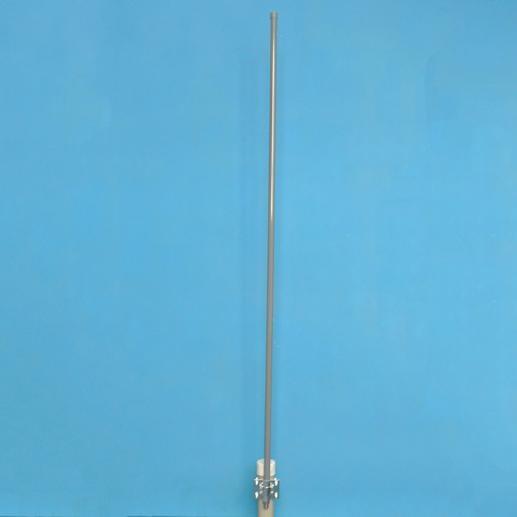

AMEISON manufacturer 2.3-2.7G high gain fiberglass omni-directional antenna 11dbi outdoor fiberglass omni antenna
Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability
Application :
2.3-2.7G/2.4G/WIFI/WLAN system
Point-to-multipoint system
2300～2700MHz Fiberglass Omnidirectional Antenna
| AMXF-2327-11 Electrical Specifications |
| Frequency range(MHz) | 2300～2700 |
| Bandwidth(MHz) | 400 |
| Gain(dBi) | 11 |
| Half-power beam width(°) | H:360 V:7 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N Female |
| Mechanical Specifications |
| Dimensions (mm) | Φ20*1200 |
| Antenna weight(kg) | 0.53 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome color | Gray |
| Mounting way | Pole-holding |
| Mounting hardware(mm) | ￠35-￠50 |
Install as the picture below
Installation Steps
1.Place the M6 U-shape screw through the holes on the clamps to mount the antenna to the pole whose outer diameter is ￠35～￠50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2. There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3. Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4. Please pay attention to lightning protection.
|
|
